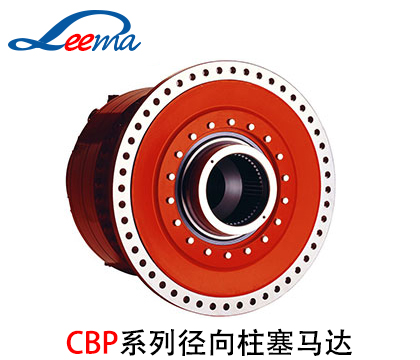

赫格隆Hagglunds液压马达CBP系列
无级调速,可快速、频繁启停,对电网冲击小;启动扭矩大,启动能力强,抗过载能力强;设备质量可靠,使用寿命长,故障率低,维护量小,维护费用低;安装方便,操作简易;节能环保。
赫格隆CBP系列液压马达常见型号及其参数: | |||||||||
Type / version | CBP 140 | ||||||||
Size | 80 | 100 | 120 | 140 | |||||
Displacement | V g | cm? | 5024 | 6280 | 7543 | 8800 | |||
Operating pressure, continuous | p max | bar | 350 | 350 | 350 | 350 | |||
Speed | n max | rpm | 400 | 390 | 320 | 275 | |||
Specific torque | T S | Nm | 80 | 100 | 120 | 140 | |||
Type / version | CBP 280 | ||||||||
Size | 160 | 200 | 240 | 280 | |||||
Displacement | V g | cm? | 10100 | 12600 | 15100 | 17600 | |||
Operating pressure, continuous | p max | bar | 350 | 350 | 350 | 350 | |||
Speed | n max | rpm | 170 | 170 | 170 | 170 | |||
Specific torque | T S | Nm | 160 | 200 | 240 | 280 | |||
Type / version | CBP 400 | ||||||||
Size | 240 | 280 | 320 | 360 | 400 | ||||
Displacement | V g | cm? | 15100 | 17600 | 20100 | 22600 | 25100 | ||
Operating pressure, continuous | p max | bar | 350 | 350 | 350 | 350 | 350 | ||
Speed | n max | rpm | 170 | 170 | 170 | 170 | 170 | ||
Specific torque | T S | Nm | 240 | 280 | 320 | 360 | 400 | ||
Type / version | CBP 560 | ||||||||
Size | 440 | 480 | 520 | 560 | |||||
Displacement | V g | cm? | 27600 | 30200 | 32700 | 35200 | |||
Operating pressure, continuous | p max | bar | 350 | 350 | 350 | 350 | |||
Speed | n max | rpm | 135 | 135 | 135 | 135 | |||
Specific torque | T S | Nm | 440 | 480 | 520 | 560 | |||
Type / version | CBP 840 | ||||||||
Size | 600 | 640 |
&
