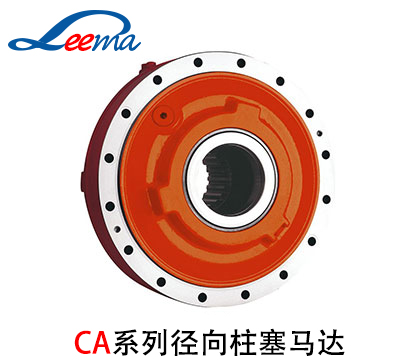

Hagglunds赫格隆液压马达CA系列
无级调速，可快速、频繁启停，对电网冲击小;启动扭矩大，启动能力强，抗过载能力强;设备质量可靠，使用寿命长，故障率低，维护量小，维护费用低;安装方便，操作简易;节能环保。
| 赫格隆HagglundsCA系列液压马达常见型号及其参数： | |||||||
| Type / version | CA 50 | ||||||
| Size | 20 | 25 | 32 | 40 | 50 | ||
| Displacement | V g | cm? | 1256 | 1570 | 2010 | 2512 | 3140 |
| Operating pressure, continuous | p max | bar | 350 | 350 | 350 | 350 | 350 |
| Speed | n max | rpm | 400 | 400 | 400 | 350 | 280 |
| Specific torque | T S | Nm | 20 | 25 | 32 | 40 | 50 |
| Type / version | CA 70 | ||||||
| Size | 40 | 50 | 60 | 70 | |||
| Displacement | V g | cm? | 2512 | 3140 | 3771 | 4400 | |
| Operating pressure, continuous | p max | bar | 350 | 350 | 350 | 350 | |
| Speed | n max | rpm | 400 | 320 | 275 | 240 | |
| Specific torque | T S | Nm | 40 | 50 | 60 | 70 | |
| Type / version | CA 100 | ||||||
| Size | 40 | 50 | 64 | 80 | 100 | ||
| Displacement | V g | cm? | 2512 | 3140 | 4020 | 5024 | 6280 |
| Operating pressure, continuous | p max | bar | 350 | 350 | 350 | 350 | 350 |
| Speed | n max | rpm | 400 | 400 | 390 | 310 | 270 |
| Specific torque | T S | Nm | 40 | 50 | 64 | 80 | 100 |
| Type / version | CA 140 | ||||||
| Size | 80 | 100 | 120 | 140 | |||
| Displacement | V g | cm? | 5024 | 6280 | 7543 | 8800 | |
| Operating pressure, continuous | p max | bar | 350 | 350 | 350 | 350 | |
| Speed | n max | rpm | 340 | 275 | 245 | 220 | |
| Specific torque | T S | Nm | 80 | 100 | 120 | 140 | |
| Type / version | CA 210 | ||||||
| Size | 160 | 180 | 210 | ||||
| Displacement | V g | cm? | 10051 | 11314 | 13200 | ||
| Operating pressure, continuous | p max | bar | |||||
