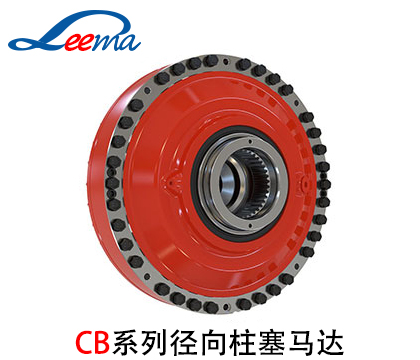

赫格隆Hagglunds柱塞马达CB系列
无级调速，可快速、频繁启停，对电网冲击小;启动扭矩大，启动能力强，抗过载能力强;设备质量可靠，使用寿命长，故障率低，维护量小，维护费用低;安装方便，操作简易;节能环保。
| Hagglunds赫格隆柱塞马达CB系列常见型号及其参数： | |||||||||||
| ype / version | CB 280 | ||||||||||
| Size | 240 | 280 | |||||||||
| Displacement | V g | cm? | 15100 | 17600 | |||||||
| Operating pressure, continuous | p max | bar | 350 | 350 | |||||||
| Speed | n max | rpm | 68 | 58 | |||||||
| Specific torque | T S | Nm | 240 | 280 | |||||||
| Type / version | CB 400 | ||||||||||
| Size | 240 | 280 | 320 | 360 | 400 | 440 | 480 | 520 | 560 | ||
| Displacement | V g | cm? | 15100 | 17600 | 20100 | 22600 | 25100 | 27600 | 30200 | 32700 | 35200 |
| Operating pressure, continuous | p max | bar | 350 | 350 | 350 | 350 | 350 | 320 | 290 | 270 | 250 |
| Speed | n max | rpm | 125 | 105 | 94 | 82 | 75 | 65 | 62 | 57 | 53 |
| Specific torque | T S | Nm | 240 | 280 | 320 | 360 | 400 | 440 | 480 | 520 | 560 |
| Type / version | CB 560 | ||||||||||
| Size | 440 | 480 | 520 | 560 | |||||||
| Displacement | V g | cm? | 27600 | 30200 | 32700 | 35200 | |||||
| Operating pressure, continuous | p max | bar | 350 | 350 | 350 | 350 | |||||
| Speed | n max | rpm | 65 | 62 | 57 | 53 | |||||
| Specific torque | T S | Nm | 440 | 480 | 520 | 560 | |||||
| Type / version | CB 840 | ||||||||||
| Size | 600 | 640 | 680 | ||||||||
