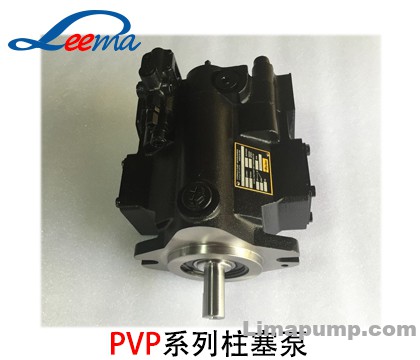

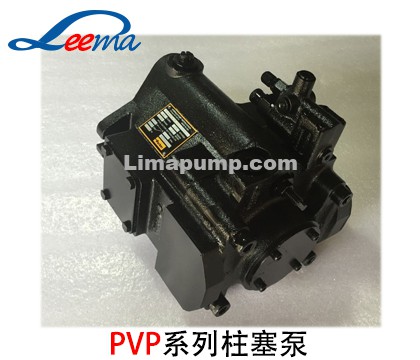

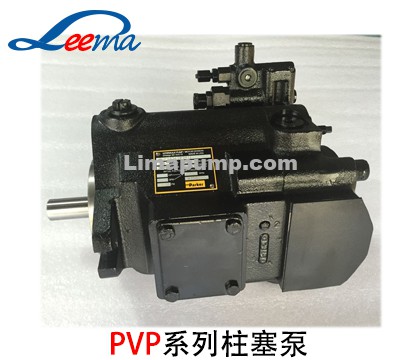

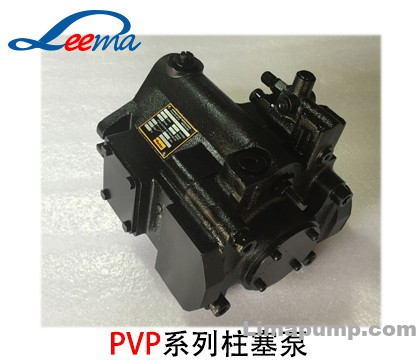

派克PVP系列轴向柱塞泵带有通轴结构，可作为单泵和多联泵，用于开式回路的斜盘式结构，派克PVP系列轴向柱塞泵的安装形式为公制或SAE。派克PVP系列轴向柱塞泵有带标准压力调节器和带遥控压力调节器两种选择。Parker派克PVP系列轴向柱塞泵最大排量从16至140ml/rev，额定工作压力为250bar，最低转速为每分钟500转
派克PVP系列变量轴向柱塞泵的技术参数
| 排 量 | 16-140ml/rev |
| 工作压力 | |
| 出口端 | 额定250bar 最大350bar |
| 入口端 | 最小0.8bar （绝对）最大0.7bar |
| 最低转速 | 500转/min |
| 连接法兰 | 4-孔法兰ISO 3019/2 可选择 ISO 3019/1,SAE |
| 温度范围 | -40℃至+70℃ |
单泵的技术参数
| 型号 | 最大排量 （ml/rev） | 流量（转速为1500rpm和20bar时） （l/min） | 时驱动功率 （1500min-1和250 bar时） | 最高转速 （min-1） | 重量 （kg） |
| PVP 16 | 16 | 24.6 | 11.3 | 3000 | 13.2 |
| PVP 23 | 23 | 34.5 | 15.3 | 3000 | 20.4 |
| PVP 33 | 33 | 49.5 | 21.3 | 3000 | 20.4 |
| PVP 41 | 41 | 61.5 | 27.7 | 2800 | 25 |
| PVP48 | 48 | 72.0 | 33.6 | 2400 | 25 |
| PVP 60 | 60 | 90.0 | 41.7 | 2200 | 41 |
| PVP 76 | 76 | 114.0 | 52.8 | 2200 | 41 |
| PVP 100 | 100 | 150.0 | 69.5 | 1800 | 82 |
| PVP 140 | 140 | 210.0 | 97.3 | 1800 | 82 |
派克PVP系列变量轴向柱塞泵型号：
| PVP10036CR2C10 |
| PVP3336C2R26B221 |
| PVP14036E2R6B3MP10 |
| PVP3336C2R26B2HP21 |
| PVP16362R212 |
| PVP3336C2R2A21 |
| PVP16362R26A1AP12 |
| PVP3336C2R2M21 |
| PVP16362R2M12 |
| PVP3336C2R2P21 |
| PVP16362R2MVP12 |
| PVP3336C2R2V21 |
| PVP16362R2P12 |
| PVP3336C2R6A2M21 |
| PVP16362R2VP12 |
| PVP3336C2R6A521 |
| PVP16364R26A112 |
| PVP3336C2R6B3C21 |
| PVP16364R26A1VM12 |
| PVP3336C2R6B3H21 |
| PVP16364R26A1VP12 |
| PVP3336C3L26A2M21 |
| PVP16364R26A212 |
| PVP3336C3R221 |
| PVP16364R26A2A12 |
| PVP3336C3R26A221 |
| PVP16364R26A2C12 |
| PVP3336C3R26A2M21 |
| PVP16364R26A2M12 |
| PVP3336C3R26A421 |
| PVP16364R26A2P12 |
| PVP3336C3R26B121 |
| PVP16364R26A412 |
| PVP3336C3R26B1M21 |
| PVP16364R26A4M12 |
| PVP3336C3R26B221 |
| PVP16364R26A4ME12 |
| PVP3336C3R26B321 |
| PVP16364R26A4MP12 |
| PVP3336C3R26B3A21 |
| PVP16364R26A4MV12 |
| PVP3336C3R26B3P21 |
| PVP16364R26A4P12 |
| PVP3336C3R2A21 |
| PVP16364R26T12 |
| PVP3336C3R2H21 |
| PVP16364R26TA12 |
| PVP3336C3R2P21 |
| PVP16364R26TAP12 |
| PVP3336C3R6B1M21 |
| PVP16364R26TC12 |
| PVP3336C3R6B3H21 |
| PVP16364R26TMP12 |
| PVP3336CR221 |
| PVP16364R6A1A12 |
| PVP3336D2L21 |
| PVP16364R6A1H12 |
| PVP3336D2L221 |
| PVP16364R6A1M12 |
| PVP3336D2L26B4C21 |
| PVP16364R6A1ME12 |
| PVP3336D2L26B4H21 |
| PVP16364R6A1V12 |
| PVP3336D2L2H21 |
| PVP16368R12 |
| PVP3336D2L6A4A21 |
| PVP16368R212 |
| PVP3336D2L6B3A21 |
| PVP16368R2AP12 |
| PVP3336D2LAP21 |
| PVP16368R2P12 |
| PVP3336D2R21 |
| PVP16369L212 |
| PVP3336D2R221 |
| PVP16369L2A12 |
| PVP3336D2R26A1A21 |
| PVP16369L2AP12 |
| PVP3336D2R26A4A21 |
| PVP16369R12 |
| PVP3336D2R26A4HP21 |
| PVP16369R212 |
| PVP3336D2R26B3M21 |
| PVP16369R29A412 |
| PVP3336D2R26B4HP21 |
| PVP16369R29A4A12 |
| PVP3336D2R2AVP21 |
| PVP16369R29A4ME12 |
| PVP3336D2R6A421 |
| PVP16369R2A12 |
| PVP3336D2R6A4A21 |
| PVP16369R2AP12 |
| PVP3336D2R6A4C21 |
| PVP16369R2AV12 |
| PVP3336D2R6B3C21 |
| PVP16369R2H12 |
| PVP3336D2R6B4A21 |
| PVP16369R2M12 |
| PVP3336D3L26A2A21 |
| PVP16369R2ME12 |
| PVP3336D3L26B3A21 |
| PVP16369R2P12 |
| PVP3336D3R221 |
| PVP16369R2V12 |
| PVP3336D3R26A4M21 |
| PVP16369R9A4A12 |
| PVP3336D3R26B321 |
| PVP16369RA12 |
| PVP3336D3R26B3P21 |
| PVP16369RH12 |
| PVP3336D3R2A21 |
| PVP1636B4L12 |
| PVP3336D3R6A421 |
| PVP1636B4L212 |
| PVP3336D3R6B321 |
| PVP1636B4L26A412 |
| PVP3336D9L221 |
| PVP1636B4L2A12 |
| PVP3336D9L29A421 |
| PVP1636B4L6A2A12 |
| PVP3336D9L29A4M21 |
| PVP1636B4LVP12 |
| PVP3336D9L2A21 |
| PVP1636B4R12 |
| PVP3336D9L9A4A21 |
| PVP1636B4R212 |
| PVP3336D9R2A21 |
| PVP1636B4R26A412 |
| PVP3336D9R2P21 |
| PVP1636B4R26A4M12 |
| PVP3336DR221 |
| PVP1636B4R2A12 |
| PVP3336DR2M21 |
| PVP1636B4R2H12 |
| PVP41362L211 |
| PVP1636B4R2M12 |
